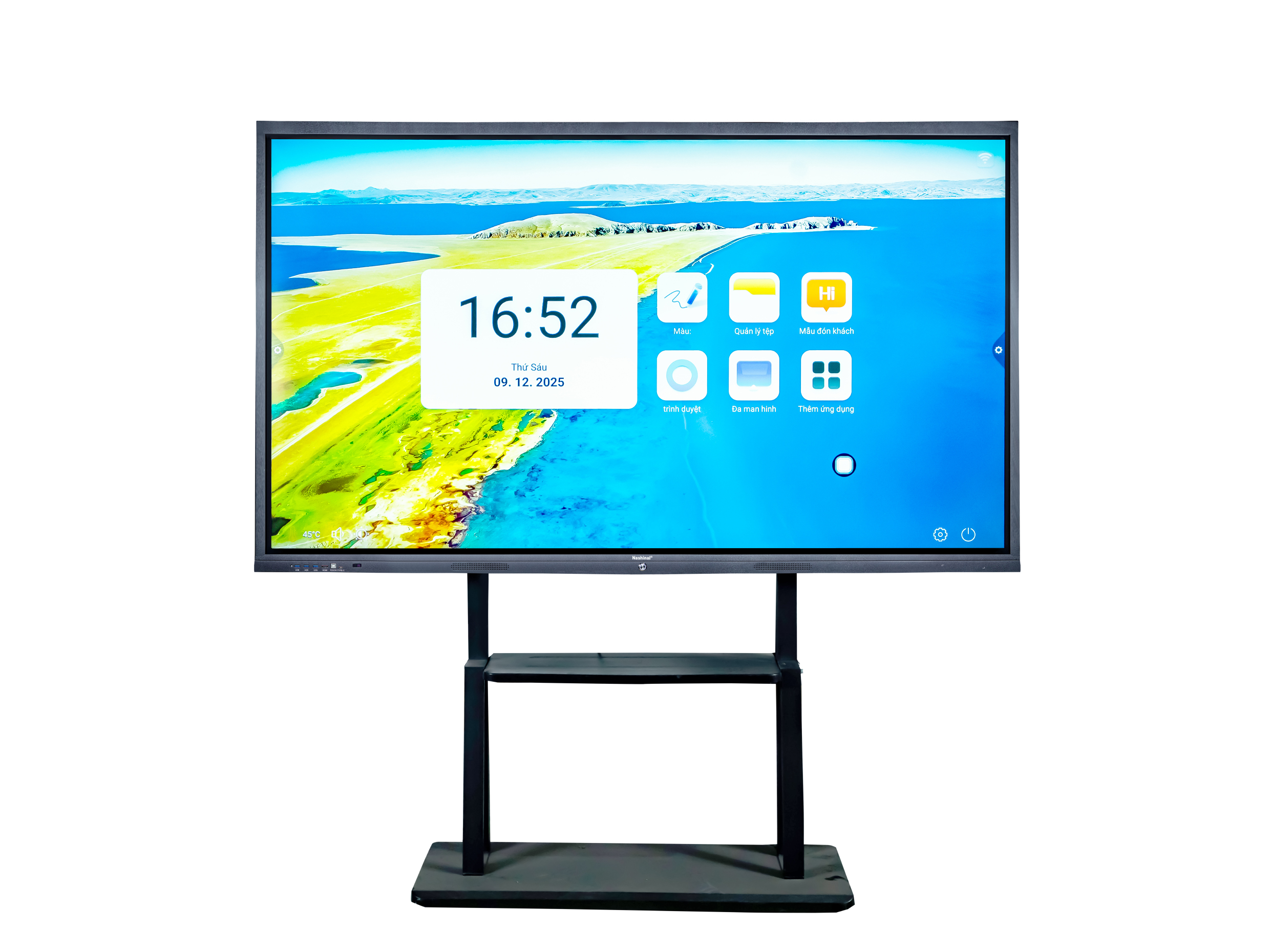

Màn hình Tương tác 55 inch NSN

THÔNG SỐ KỸ THUẬT – Model: NSN-55MTT25K

Panel

• Brand: Customized

• Backlight: DLED

• Size: 55 inch

• Display Area: 1209.6 × 680.4 mm

• Resolution: 3840 × 2160 (4K UHD)

• Refresh Rate: 60Hz

• Brightness: 400 cd/m²

• Contrast Ratio: 4000:1

• Viewing Angle: 178° (H) / 178° (V)

• Color: 16.7M

• Color Gamut: 72%

• Lifetime: 50,000 giờ

Mechanical

• Bezel Colour: Black / Silver + Black

• Shell Material: Metal + Plastic

• Tempered Glass: Yes (AG Anti-Glare Glass)

• Bezel Width: 20.5 mm

• Unit Size (W×H×D): 1265 × 807 × 93.7 mm (xấp xỉ)

• Net Weight: 35 kg

• Package Size (W×H×D): 1360 × 190 × 900 mm (xấp xỉ)

• Total Weight: 45 kg

System Parameters

• Chip: GK6780V100

• CPU: 8×A55, 1.5GHz

• GPU: Mali-G52 MP2 (2EE)

• RAM: 4GB DDR

• ROM: 64GB EMMC

• Android Version: Android 14

• Camera Configuration: Optional (hỗ trợ gắn ngoài hoặc tích hợp theo yêu cầu)

• Glass: Integrated AG Anti-Glare Glass

Multi-Media

• Video: MPEG-1/2/4, AVS2, H.264, H.265, VP9

• Audio: MP3, AAC, APE, LPCM, FLAC

• HD Input: HDMI 1920×1080@60Hz / 3840×2160@60Hz

Network

• Network Support: 2.4G wireless + wired network

Terminals

• Ethernet (RJ45): 1

• HDMI IN: 2

• HDMI OUT: /

• RS232: 1

• Earphone: 1

• SPDIF: 1

• USB 2.0: 2

• USB 3.0: 1

• TOUCH USB (USB2.0-B): 1

• TF Card: 1

• Wi-Fi: 2.4G + 5G wireless network

• Bluetooth: BT 5.0

• OPS Ports: Optional

Voice

• Speaker Power: 2×15W (8Ω) THD+N<10%@1KHz

• Frequency Response: 100Hz–15kHz ±3dB

• Speaker Type: Stereo Cabinet Speakers

Environmental

• Operating Temperature: 0°C – 40°C

• Storage Temperature: -20°C – 60°C

• Operating Humidity: 10% – 90%

• Storage Humidity: 5% – 95%

Power

• Power Consumption: 180W (max)

• Standby Consumption: <0.5W

• Input Voltage: 100–240V~, 50/60Hz

Accessories

• Included: Remote Control, Touch Pen, Wall Mount Kit, Power Cable, User Manual

Certification & Warranty

• Certification: CE / FCC / RoHS

• Warranty: 12 tháng
